Scraper drum dryer



Capacity:40-630 L/h

Application: yeast, fish feed, sweet potato

Industry: for drying liquid raw material or sticky material in chemical industry, dyestuff industry, pharmaceutical industry, foodstuff industry, and metallurgy industry and so on.

Get Price
INTRODUCTION

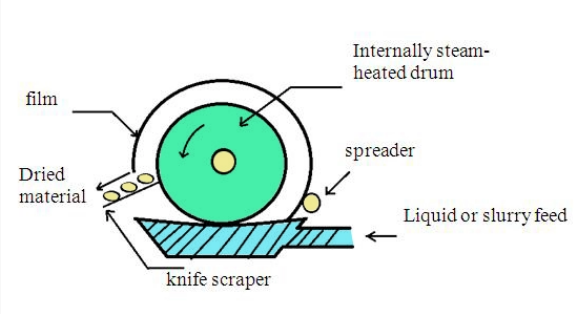

Scrape dryer is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness of materials film attach to the drum from material liquid vessel under the drum.Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film,to evaporate the moisture in materials film so as to dry materials.Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral conveyor under the blade,and are conveyed,collected and packed.

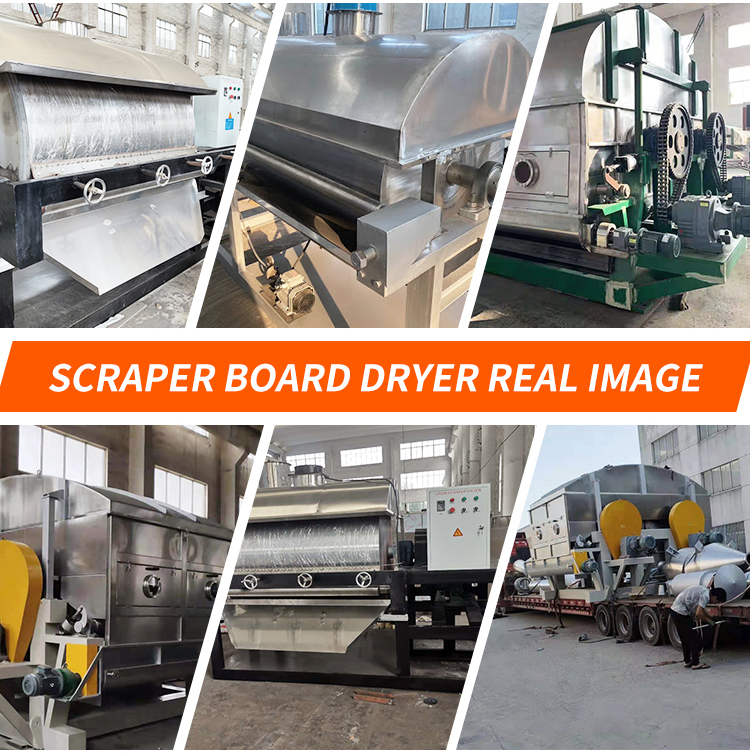

PICTURES
Parameters
Item Model Cylider Size(mm) Effective Heating Area (m²) Drying cacity kg.water/m².h Steam Consumption kg/h Power (kw) Dimension (mm) Weight (kg)
GRT-600 600*800 1.12 40-70 100-175 2.2 1700*800*1500 850
GRT-700 700*1000 1.65 60-90 150-225 3 2100*1000*1800 1210
GRT-800 800*1200 2.26 90-130 225-325 4 2500*1100*1980 1700
GRT-1000 1000*1400 3.3 130-190 325-475 5.5 2700*1300*2250 2100
GRT-1200 1200*1500 4.24 160-250 400-625 7.5 2800*1500*2450 2650
GRT-1400 1400*1600 5.28 210-310 525-775 11 3150*1700*2800 3200
GRT-1600 1600*1800 6.79 270-400 675-1000 11 3350*1900*3150 4350
GRT-1800 1800*2000 8.48 330-500 800-1200 15 3600*2050*3500 5100
GRT-1800A 1800*2500 10.6 420-630 1050-1575 18.5 4100*2050*3500 6150
This equipment is customized, more options please contact us.
Advantages

1) High heat efficiency
Heat loss is mainly caused thermal radiation. Heat efficiency can be as high as 90%.

2) Short drying time:
The drying process only takes 10-15 seconds. So drum dryer can be used for drying heat sensitive material.

3) Highest hygienic standard
Indirect heating and electro-polished drum surface can assure highest hygienic working conditions.

4) Uniform drying
Heat transfer direction and coefficient all over the drum surface are the same. And wet material can be evenly spread over the drum surface. Wet material can be uniformly dried.
