Your position: Home > Product > Spray Dryer >

Pilot Spray Dryer



Capacity:

Application: aslemon Acid,chicken essence,borax,ammonium sulfate,radish silk,seeds,salt,silkworm, etc

Industry: chemical,pharmaceutical,food,dehydrated vegetables,grain,mining,etc

Get Price
INTRODUCTION

A lab spray dryer, also known as a laboratory spray dryer or benchtop spray dryer, is a small-scale version of a spray dryer used for research, development, and small-scale production in laboratory settings. It allows scientists, researchers, and engineers to study and optimize spray drying processes, assess product formulations, and produce small batches of dried powder for various applications.

Similar to larger-scale spray dryers, a lab spray dryer operates on the principle of transforming a liquid or slurry into a dry powder by spraying it into a drying chamber and exposing it to a hot airflow. However, lab spray dryers are specifically designed to handle smaller volumes of feed material and operate at reduced capacities compared to industrial-scale counterparts.

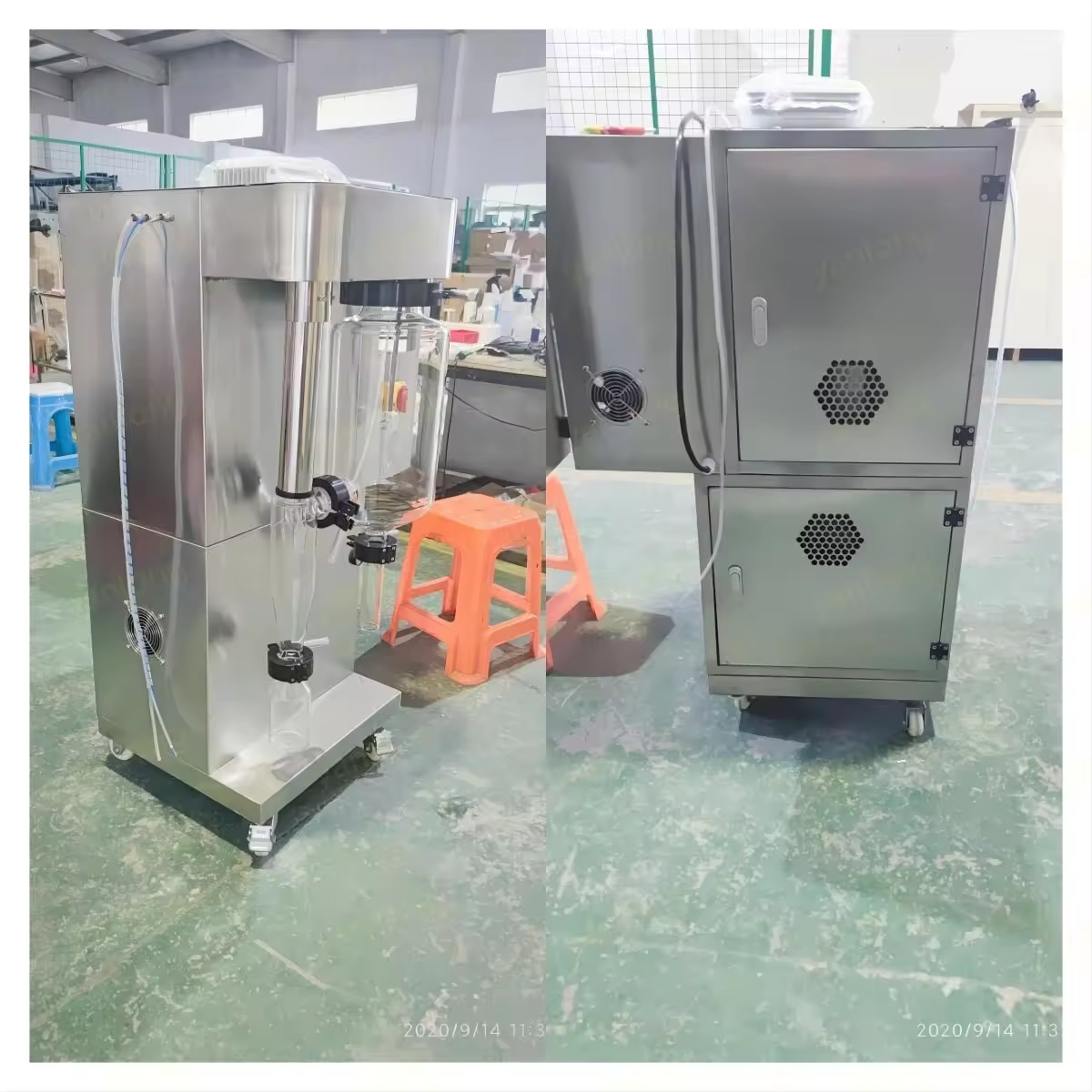

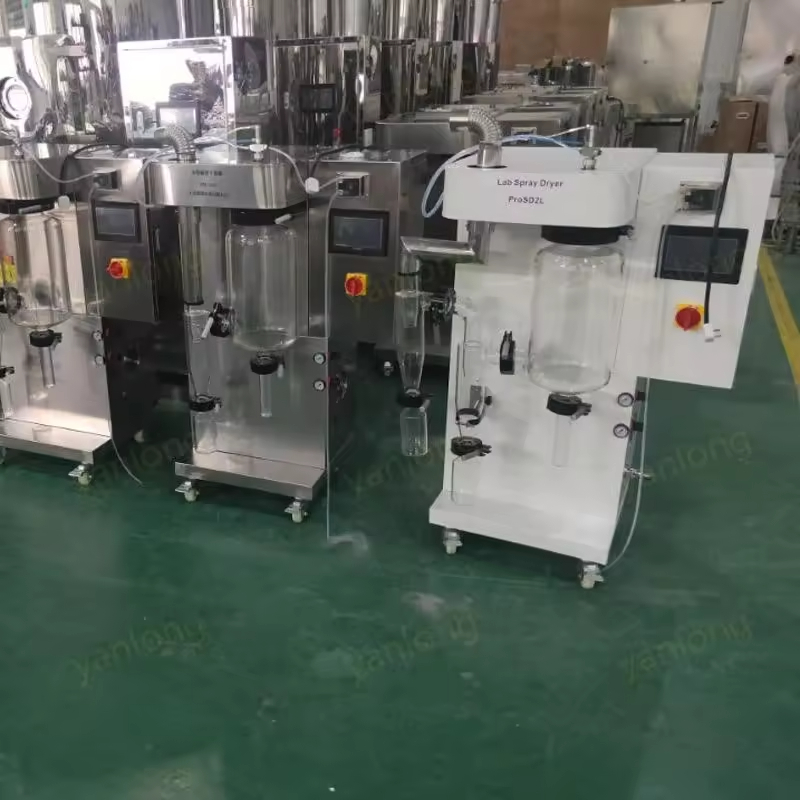

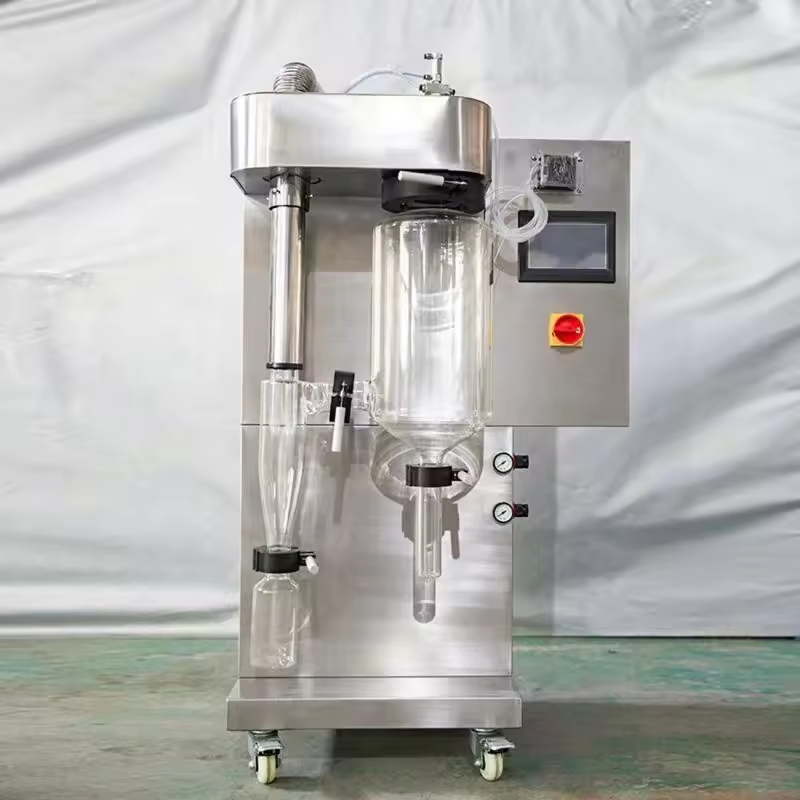

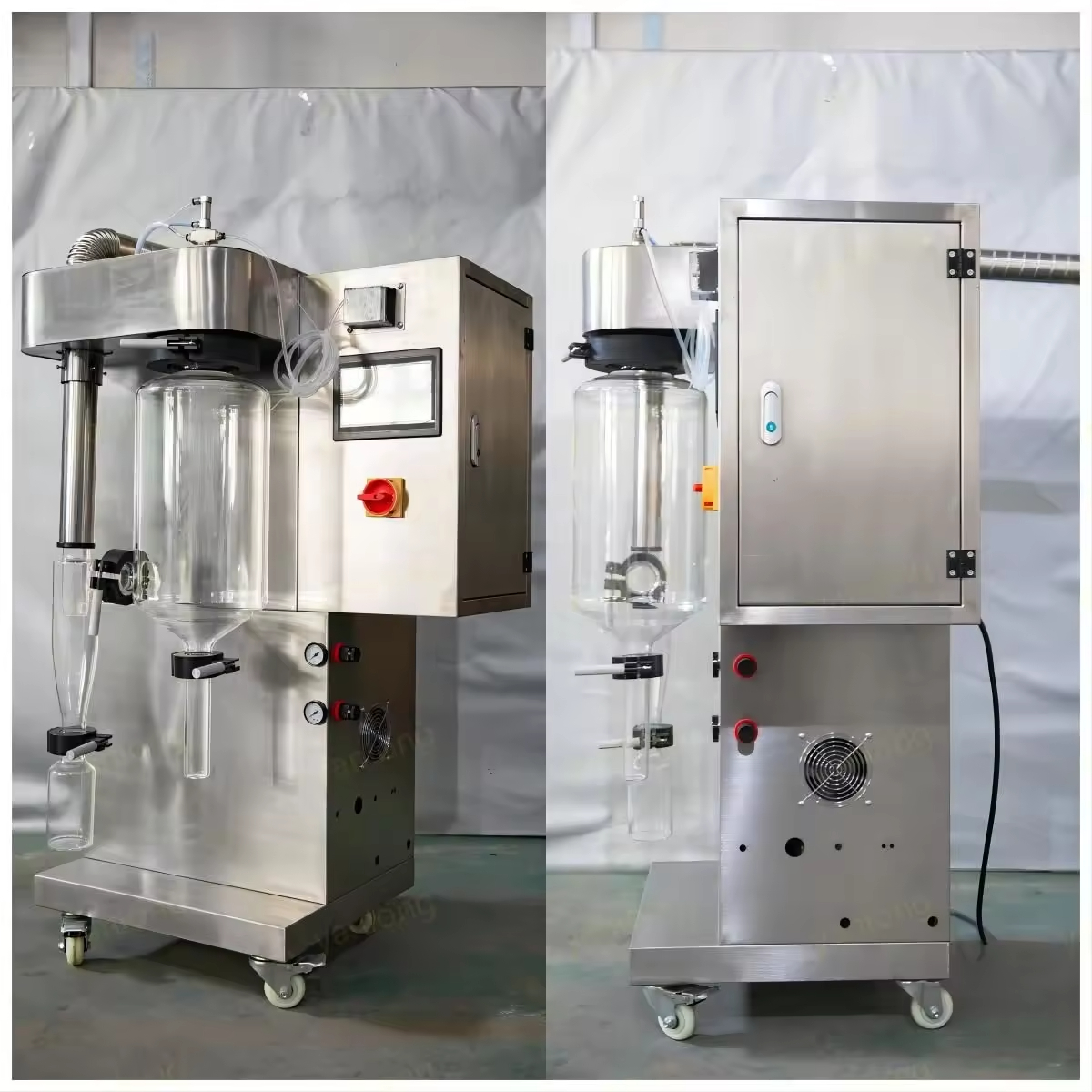

PICTURES
Parameters
Model Evaporation capacity (L/h) Heating source   Spray head rotation form Spray head rotation Speed Dimension
GRT-LPG5 5 Electricity Compressed air drive 25000 rpm 1.8*0.93*2.2m
GRT-LPG10 10 Electricity Compressed air drive 20000 rpm 2.0*0.95*2.25m
GRT-LPG25 25 Electricity/Steam/Gas/Oil Mechanical transmission 18000 rpm 3*2.7*4.26m
GRT-LPG50 50 Electricity/Steam/Gas/Oil Mechanical transmission 18000 rpm 3.7*3.2*5.1m
GRT-LPG100 100 Electricity/Steam/Gas/Oil Mechanical transmission 18000 rpm 4.6*4.2*6.0m
GRT-LPG150 150 Electricity/Steam/Gas/Oil Mechanical transmission 15000 rpm 5.5*4.5*7m
This equipment is customized, more options please contact us.
Advantages
As a spray dryer supplier, we offer:

Cost-efficient custom-made spray dryers with guaranteed yield

Newest technology developed in-house

On-time delivery

Low energy consumption in operation

Full-service partnership

With this focus, We looks to lower the Total Cost of Ownership and ensures that your business needs and expectations are met.

Turnkey solutions

GRT engineers turnkey projects where spray dryers are involved. We possess the know-how regarding the upstream and downstream processes e.g., feed pre-treatment (mixing, concentration, homogenisation, heat treatment) and powder handling (agglomeration, cooling, conveying, and packaging).






1. high speed of drying
In the hot-air flow,95%-98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds

2. suitable for drying the heat sensitive materials.
Its final products own the good uniformity, mobility, dissolving capacity.And the final products are high in their purity and good in their quality.

3. Easy control and operation
The production procedures are simple and the operation and control are easy.

4. Good adjustability
The product particle diameters ,looseness and water contents can be adjusted.


INQUIRY
Leave your contact information to get $200 coupon and detailed price list. 5% discount for new customers!
