INTRODUCTION

Spin Flash Dryer – High-Efficiency Drying for Powder Materials

A Spin Flash Dryer is a high-efficiency continuous drying system designed for drying wet cakes, pastes, and filter residues into fine powder instantly.

Through high-speed hot airflow and strong mechanical agitation, wet materials are dispersed, crushed, and dried simultaneously, making it ideal for materials that are difficult to handle with conventional dryers.

It is widely used in industries requiring fast drying, fine particle control, and stable product quality.

Key Features

1.Rapid Drying Technology: Moist materials are dried within seconds through high-speed hot airflow.

2.Ideal for Sticky & Heat-Sensitive Materials: Prevents agglomeration and thermal degradation.

3.Uniform Particle Size: Integrated crushing and classification ensure consistent powder output.

4.High Efficiency Operation: Continuous drying system improves productivity by 20–40%.

5.Automated Control: PLC system for precise control of temperature, airflow, and feed rate.

Applications

1.Chemical Industry: pigments, dyes, resins, calcium carbonate

2.Food Industry: starch, protein, additives

3.Environmental Processing: sludge and waste materials

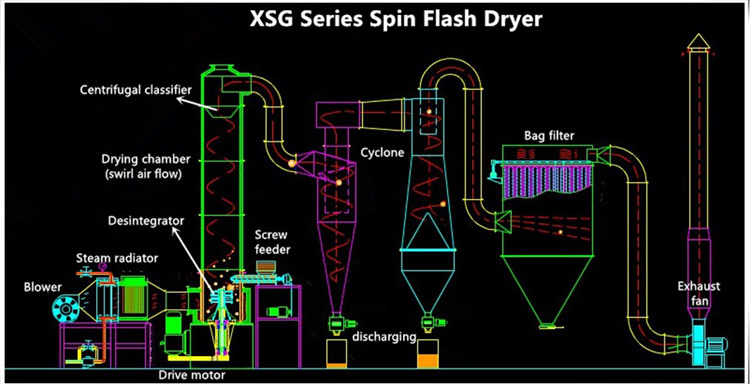

PICTURES

Parameters

Type	Barrel diameter (mm)	Treatment wind capacity (m3/h)		Water evaporation quantity (kg/h)	Max.equipment capacity (kw)	Main machine dimensions (m)	occupied area (m2)
XSG-2	200	300-800		10-20	5-9	250x2800	3500x2500
XSG-3	300	600-1500		20-50	8-15	400x3300	3800x2700
XSG-4	400	1250-2500		25-70	10-17.5	500x3500	4000x3000
XSG-5	500	1500-4000		30-100	12-24	600x4000	4200x3200
XSG-6	600	2500-5000		40-200	20-29	700x4200	4250x3250
XSG-8	800	3000-8000		60-600	24-35	900x4600	4500x3500
XSG-10	1000	5000-12500		100-1000	40-62	1100x5000	4750x3750
XSG-12	1200	10000-20000		150-1300	50-89	1300x5200	5000x4000
XSG-14	1400	14000-27000		200-1600	60-105	1500x5400	5250x4250
XSG-16	1600	18700-36000		250-2000	70-105	1700x6000	5500x4500
Note:			1.The evaporated amout of moisture is calculated when the temperature of inlet is 180℃ and the temperature of outlet is 80℃. 2.Beside the models above mentioned,specification can be made as request. 3.Occupied area will be different bacause of different enviroment.

This equipment is customized, more options please contact us.

Advantages

1. Ease of cleaning

The spin flash dryer has been designed and built to make cleaning operations fast and efficient.

2. high speed of drying

In the hot-air flow,95%-98% of water can be evaporated at a moment

3. high quality final products assurance

Final products output own characteristics of good uniformity, mobility, dissolving capacity, high purity and good quality.

4. Simple operation and control

Most liquid materials can be dried into the powder or particle products once a time. After the drying, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity.
